Top Reasons Scan to BIM Services Support MEP Coordination in Renovation Projects

MEP coordination on a renovation project is only as reliable as the existing conditions data behind it. When mechanical, electrical, and plumbing teams work from outdated drawings, conflicts surface in the field instead of on screen, and that costs time and budget on every trade involved. Scan to BIM Services solve this by giving BIM Coordinators, MEP Engineers, and Construction Managers a verified digital record of a building's actual conditions before new systems are designed or installed.

Why MEP Coordination Is Harder in Renovation Projects?

New construction starts with a clean set of coordinates. Renovation work does not. Ductwork gets rerouted over the years, piping runs get modified during past repairs, and ceiling heights often shrink after multiple rounds of tenant improvements. None of this typically makes it back into the original drawings.

When MEP teams design around inaccurate baseline data, the result is predictable, conflicts between new equipment and existing structure, ducts that do not fit where they were planned, and last-minute field adjustments that eat into the schedule. Accurate existing conditions data removes most of this risk before design work even begins.

Capturing Accurate Existing Conditions Before MEP Design Begins

Laser Scan to BIM Services use 3D laser scanning to capture a building's actual geometry, walls, ceilings, structural elements, and existing MEP systems, as a dense set of measured points called a point cloud. This data reflects the building exactly as it stands today, including any undocumented changes made over the years.

The U.S. General Services Administration has used 3D laser scanning on federal renovation and modernization projects for this same reason, noting its value for capturing as-built and as-is documentation on complex existing buildings, according to GSA's BIM Guide program.

Turning Scan Data Into Usable MEP Geometry

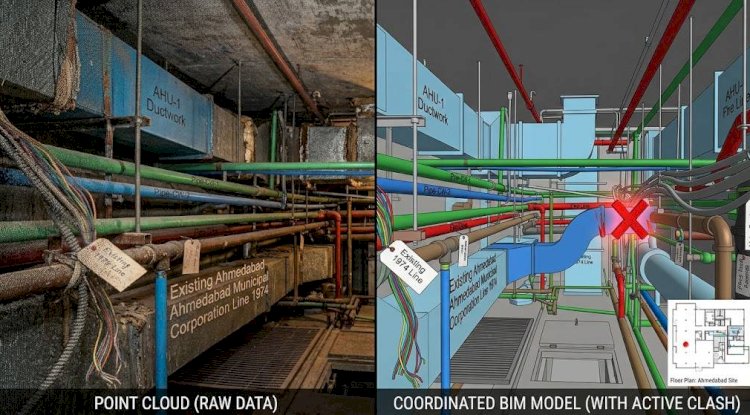

A point cloud on its own is not something a design team can build from directly. Point Cloud to BIM Services convert this raw scan data into structured, modeled building elements, ductwork with correct sizing, piping with accurate routing, and structural members positioned exactly where they exist. This modeled data becomes the shared reference point every discipline coordinates against.

Top Reasons Point Cloud to BIM Services Improve MEP Coordination

Eliminating Guesswork in Existing System Layouts

Field verification by hand is slow and prone to error, especially above ceilings or inside mechanical rooms with limited access. A scanned and modeled building removes the guesswork, giving MEP Engineers a verified layout of existing ducts, pipes, and conduit before new work is designed around them.

Enabling Reliable Clash Detection Before Construction

Once existing conditions are modeled accurately, new MEP designs can be checked against real building geometry using standard coordination workflows. Many of these workflows rely on open data formats such as IFC, maintained by buildingSMART International, to support clash detection between architectural, structural, and MEP models from different software platforms. Catching a conflict in a coordinated model costs far less than catching it during installation.

Supporting Accurate MEP 3D Modeling for New Systems

Reliable existing conditions data directly improves the quality of new MEP 3D Modeling work. When engineers know exactly how much clearance exists above a ceiling or beside a structural beam, they can design ductwork, piping, and equipment layouts that fit the first time, rather than adjusting sizes and routing after a failed field check.

Reducing Field Rework and Change Orders

Rework driven by inaccurate existing conditions is one of the most common sources of change orders on renovation projects. Scan-based models reduce this risk significantly by giving every trade the same accurate baseline, cutting down on the disputes and delays that come from conflicting field measurements between contractors.

How MEP Coordination Services Bring Trades Together?

MEP Coordination Services bring mechanical, electrical, and plumbing models together into a single coordinated environment, built on top of accurate scan-based existing conditions data. This process identifies conflicts between trades early, sequences installation logically, and keeps every discipline working from the same verified information instead of separate, disconnected drawings.

Why Full-Building 3D BIM Modeling Supports Better Coordination?

While MEP systems benefit directly from scan-based accuracy, 3D BIM Modeling of architectural and structural elements matters just as much for renovation coordination. Ceiling heights, wall locations, and structural framing all affect how much room MEP systems have to work with, so a complete model across all disciplines gives the coordination process a full picture rather than a partial one.

What to Look for in a Provider for MEP-Heavy Renovations?

Renovation projects with dense MEP systems need a provider comfortable working at higher levels of detail, particularly around mechanical rooms, risers, and ceiling plenums where clearance is tight. Look for a team experienced with US commercial and institutional buildings, familiar with common coordination platforms, and capable of delivering models accurate enough to support real clash detection rather than just visual reference.

Conclusion

MEP coordination fails most often when it starts from bad data. Scan to BIM Services give renovation teams a verified, accurate starting point, reducing clashes, cutting field rework, and helping BIM Managers and Construction Managers keep MEP-heavy renovation projects on schedule and on budget.
